Northern Strait of Georgia — January 2018

This notebook walks through an example analysis of acoustic tracking performance using range test data from the Northern Strait of Georgia near Comox BC in January 2018.

In this notebook we will: * Load configuration settings from yaml files * Create a Detections object by loading detection event data & receiver/transmitter deployment metadata, processing those detections, and adding in other environmental variables.

* Generate visual reports to assist in analysing what factors drive a transmitter tag’s range.

Data Set Up

First off, we need to download the data files that we will be using in this notebook. Download the data folder from this SFU Vault link. Once the full folder has been downloaded place it in the same folder where this notebook is located. With this, your range-driver-tutorials/tutorials/NSOG_Jan2018 folder should contain 2 folders (configs & data) & 1 file (this notebook).

Imports

import range_driver as rd
import pandas as pd
import kadlu

%matplotlib inline
rd.mpl_set_notebook_params()

# Set the kadlu storage location to point to cached data
kadlu.storage_cfg(setdir=f'{rd.utils.repo_path()}/data/NSOG_Jan2018/kadlu_data/')

/home/runner/work/range-driver/range-driver/data/NSOG_Jan2018/kadlu_data/

Load configuration from YAML files

baseconfig = rd.yload(rd.load_file("configs/base_config.yaml"))
viewconfig = rd.yload(rd.load_file("configs/view_config.yaml"))
rd.deep_update(baseconfig, viewconfig)

rawconfig = rd.yload(rd.load_file("configs/nsog_jan2018_config.yaml"))
config = rd.merge_dicts(baseconfig, rawconfig)

rd.prepare_config(config)

Read Detections, Metadata, and Environmental Variables

dets = rd.Detections(config, do_processing=True)

Detail Reports

rd.report_group_info(dets)

Detection rate plots for data screening

NSOG011P-VR3-144-1-144/tag-38034-U-L

		tstart	tend	count	min_interval	max_interval	Receiver/Transmitter	dist_m	Transmitter.Tag Family	Transmitter.ID	Transmitter.Power	Transmitter.Min delay	Transmitter.Max delay	Transmitter.Avg delay
NSOG011P-VR3-144-1-144	A69-1601-38034	2018-01-01 21:33:04	2018-01-31 20:30:42	229	3419.0	597833.0	NSOG011P-VR3-144-1-144/tag-38034-U-L	NaN	V16-5x	38034	L	1700	1900	1800.0

NSOG012P-VR3-145-1-145/tag-38034-U-L

		tstart	tend	count	min_interval	max_interval	Receiver/Transmitter	dist_m	Transmitter.Tag Family	Transmitter.ID	Transmitter.Power	Transmitter.Min delay	Transmitter.Max delay	Transmitter.Avg delay
NSOG012P-VR3-145-1-145	A69-1601-38034	2018-01-01 00:54:10	2018-01-31 23:46:41	454	3411.0	89220.0	NSOG012P-VR3-145-1-145/tag-38034-U-L	NaN	V16-5x	38034	L	1700	1900	1800.0

NSOG013P-VR3-336-1-336/tag-38034-U-L

		tstart	tend	count	min_interval	max_interval	Receiver/Transmitter	dist_m	Transmitter.Tag Family	Transmitter.ID	Transmitter.Power	Transmitter.Min delay	Transmitter.Max delay	Transmitter.Avg delay
NSOG013P-VR3-336-1-336	A69-1601-38034	2018-01-01 02:03:19	2018-01-22 06:07:24	198	3414.0	147471.0	NSOG013P-VR3-336-1-336/tag-38034-U-L	NaN	V16-5x	38034	L	1700	1900	1800.0

NSOG010P-VR3-147-1-147/tag-38035-U-H

		tstart	tend	count	min_interval	max_interval	Receiver/Transmitter	dist_m	Transmitter.Tag Family	Transmitter.ID	Transmitter.Power	Transmitter.Min delay	Transmitter.Max delay	Transmitter.Avg delay
NSOG010P-VR3-147-1-147	A69-1601-38035	2018-01-25 17:14:27	2018-01-28 05:53:02	3	14726.0	203589.0	NSOG010P-VR3-147-1-147/tag-38035-U-H	NaN	V16-5x	38035	H	1700	1900	1800.0

NSOG011P-VR3-144-1-144/tag-38035-U-H

		tstart	tend	count	min_interval	max_interval	Receiver/Transmitter	dist_m	Transmitter.Tag Family	Transmitter.ID	Transmitter.Power	Transmitter.Min delay	Transmitter.Max delay	Transmitter.Avg delay
NSOG011P-VR3-144-1-144	A69-1601-38035	2018-01-01 00:03:56	2018-01-31 22:58:55	361	3409.0	158797.0	NSOG011P-VR3-144-1-144/tag-38035-U-H	NaN	V16-5x	38035	H	1700	1900	1800.0

NSOG012P-VR3-145-1-145/tag-38035-U-H

		tstart	tend	count	min_interval	max_interval	Receiver/Transmitter	dist_m	Transmitter.Tag Family	Transmitter.ID	Transmitter.Power	Transmitter.Min delay	Transmitter.Max delay	Transmitter.Avg delay
NSOG012P-VR3-145-1-145	A69-1601-38035	2018-01-01 00:22:41	2018-01-31 21:18:51	568	3408.0	54966.0	NSOG012P-VR3-145-1-145/tag-38035-U-H	NaN	V16-5x	38035	H	1700	1900	1800.0

NSOG013P-VR3-336-1-336/tag-38035-U-H

		tstart	tend	count	min_interval	max_interval	Receiver/Transmitter	dist_m	Transmitter.Tag Family	Transmitter.ID	Transmitter.Power	Transmitter.Min delay	Transmitter.Max delay	Transmitter.Avg delay
NSOG013P-VR3-336-1-336	A69-1601-38035	2018-01-01 01:32:31	2018-01-22 08:34:11	338	3408.0	25172.0	NSOG013P-VR3-336-1-336/tag-38035-U-H	NaN	V16-5x	38035	H	1700	1900	1800.0

Data Sources

print(rd.kadlu_source_map())
print("Configured data sources:\n")
print(rd.ydump(config.data.sources))

    CHS   (Canadian Hydrography Service)
          bathymetry:       bathymetric data in Canada's waterways. metres, variable resolution

    ERA5  (Global environmental dataset from Copernicus Climate Data Store)
          wavedir:          mean wave direction, degrees
          waveheight:       combined height of wind, waves, and swell. metres
          waveperiod:       mean wave period, seconds
          wind_uv:          wind speed computed as sqrt(u^2 + v^2) / 2, where u, v are direction vectors
          wind_u:           wind speed coordinate U-vector, m/s
          wind_v:           wind speed coordinate V-vector, m/s
          precipitation:
          precip_type:
          snowfall:
          flux_ocean:
          flux_waves:
          stress_ocean:

    GEBCO (General Bathymetric Chart of the Oceans)
          bathymetry:       global bathymetric and topographic data. metres below sea level

    HYCOM (Hybrid Coordinate Ocean Model)
          salinity:         g/kg salt in water
          temp:             degrees celsius
          water_uv:         ocean current computed as sqrt(u^2 + v^2) / 2, where u, v are direction vectors
          water_u:          ocean current coordinate U-vector, m/s
          water_v:          ocean current coordinate V-vector, m/s

    WWIII (WaveWatch Ocean Model Gen 3)
          wavedir:          primary wave direction, degrees
          waveheight:       combined height of wind and waves, metres
          waveperiod:       primary mean wave period, seconds
          wind_uv:          wind speed computed as sqrt(u^2 + v^2) / 2, where u, v are direction vectors
          wind_u:           wind speed coordinate U-vector, m/s
          wind_v:           wind speed coordinate V-vector, m/s

    NEMO  (3D zonal component fields from the SalishSeaCoast Model)
          water_u:
          water_v:
          water_w:
          salinity:
          temp:
          turbidity:
          mesozooplankton:
          microzooplankton:


Configured data sources:

null
...

Maps visualization

Map view including region of interest bound, environmental data source nodes, receiver and tag locations.

rd.report_map_view(dets)

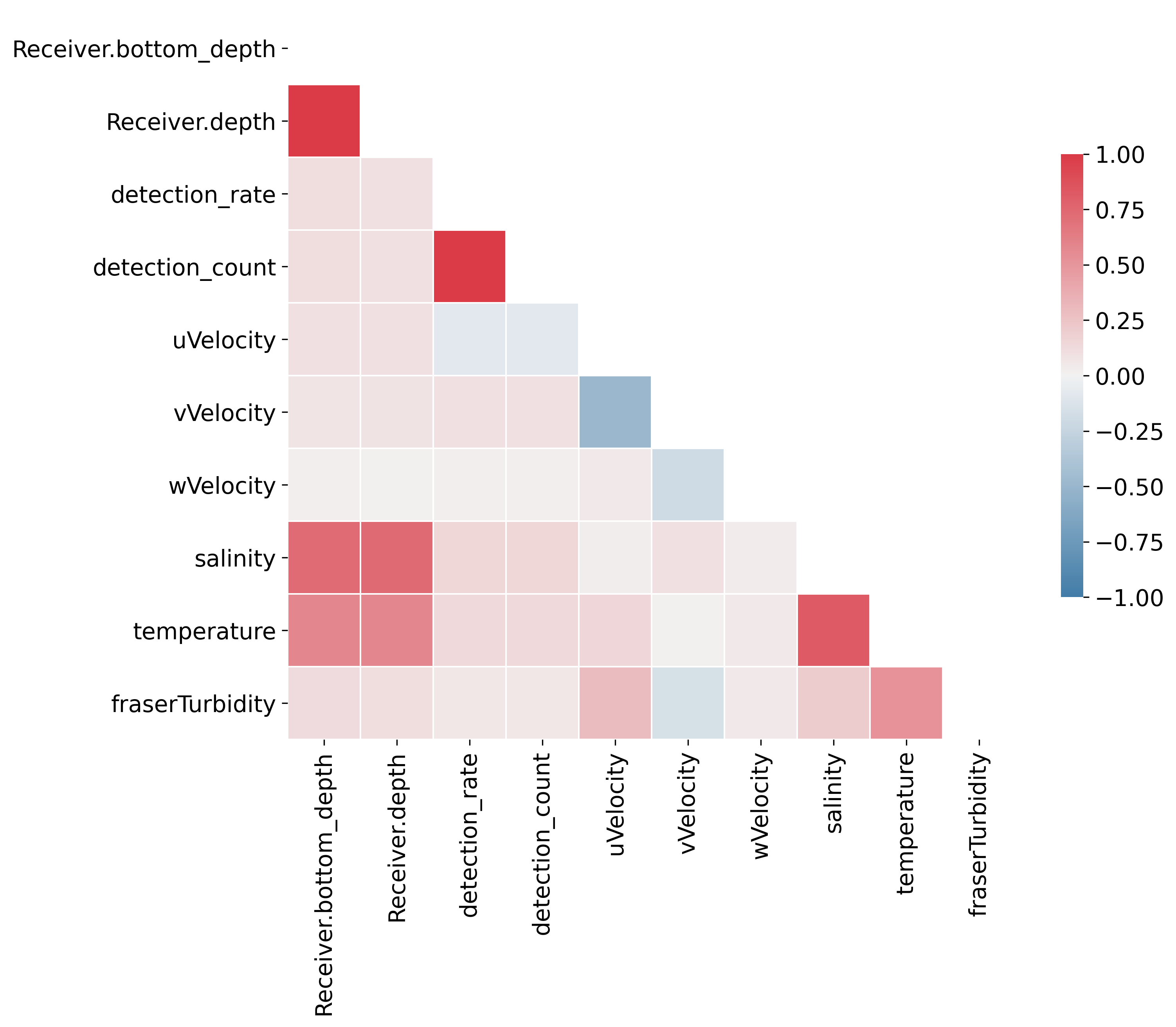

Heatmap Visualization of Features

rd.report_heatmap(dets)
